CNC Machining applications for G10 Garolite

CNC machining plays a vital role in precision manufacturing by enabling you to create intricate designs with unmatched accuracy. Recent advancements allow manufacturers to achieve exceptional dimensional accuracy and surface finishes while integrating eco-friendly practices. The global CNC machine market, projected to reach $128.86 billion by 2026, reflects its growing demand.

G10 Garolite, a high-performance composite, excels in CNC machining applications. Its strength, durability, and resistance to heat and chemicals make it ideal for producing precision components. Whether you're crafting complex geometries or drilling precise holes, G10 Garolite ensures reliable results across industries.

Key Takeaways

• G10 Garolite is a tough and long-lasting material. It is great for making precise parts in industries like airplanes and factories.

• CNC machining methods, like cutting and drilling, need special tools. Coolants are also needed to get good results with G10 Garolite.

• Using advanced ways like waterjet and laser cutting improves accuracy. These methods also help reduce wasted material during cutting.

• Safety is very important when working with G10 Garolite. Use dust control and safety gear to stay healthy.

• Good CNC machining of G10 Garolite wastes less material. It also makes tools last longer, saving time and money.

Unique Properties of G10 Garolite

Strength and Durability

G10 Garolite stands out for its exceptional strength and durability, making it a preferred material in demanding applications. Its mechanical properties allow it to maintain structural integrity even under high stress. You can rely on it for components that require excellent tensile, flexural, and impact resistance. For example, industries like aerospace and manufacturing often choose G10 Garolite over other plastics and laminates due to its superior performance.

This combination of properties ensures that G10 Garolite performs reliably in high-performance environments, offering long-term durability and reduced maintenance needs.

Electrical Insulation and Moisture Resistance

G10 Garolite excels in electrical insulation, making it indispensable in applications where safety and reliability are critical. It prevents current leakage in high-voltage environments, even in wet conditions. For instance, you’ll find it used in motor components, switchgear, and printed circuit boards (PCBs). Its low moisture absorption ensures dimensional stability, preventing swelling or rot in humid environments.

• Common applications include:

  • Manufacturing PCBs for electronics.

  • Insulating motor components to enhance safety.

  • Providing reliable insulation in high-voltage switchgear.

These properties make G10 Garolite a trusted material in electronics, renewable energy, and aerospace industries, where moisture resistance and electrical insulation are vital.

Heat and Chemical Resistance

G10 Garolite remains stable across a wide temperature range, making it suitable for high-temperature environments. It can withstand temperatures up to 180°C without softening or decomposing. This thermal stability ensures consistent performance in extreme conditions. Additionally, its chemical resistance protects it from degradation when exposed to harsh substances. You can use it confidently in chemical equipment, laboratory settings, and other demanding environments.

• Key benefits include:

  • Stability in temperatures ranging from -65°F to 285°F.

  • Resistance to a wide range of chemicals, ensuring longevity.

These attributes make G10 Garolite an excellent choice for CNC Machining, as it maintains its properties during the machining process and in its final applications.

Lightweight and Versatile Nature

G10 Garolite stands out as a lightweight material with exceptional versatility. Its high strength-to-weight ratio makes it ideal for applications where reducing weight is critical without compromising durability. This unique balance of properties allows you to achieve superior performance in demanding environments.

• Key advantages of G10 Garolite's lightweight nature:

  • Low moisture absorption ensures stability in humid conditions.

  • Maintains structural integrity across a wide temperature range.

  • Offers a high strength-to-weight ratio, perfect for precision components.

Compared to other CNC machining materials, G10 Garolite provides a distinct advantage. High-performance plastics may offer lightweight properties, but they often lack the same level of strength and dimensional stability. G10 Garolite bridges this gap, delivering both lightweight characteristics and robust mechanical performance.

"Garolite parts are utilized in sectors such as medical, aerospace, and marine due to their dimensional stability and longevity, which are critical in lightweight applications."

This versatility extends to its machinability. You can shape G10 Garolite into intricate designs or complex geometries with ease. Its lightweight nature reduces stress on CNC machines, enhancing tool longevity and efficiency. Whether you're crafting aerospace components, medical devices, or marine equipment, G10 Garolite adapts to your needs.

By choosing G10 Garolite, you gain a material that combines lightweight properties with exceptional strength and adaptability. This makes it a preferred choice for industries that demand precision, reliability, and performance.

CNC Machining Techniques for G10 Garolite

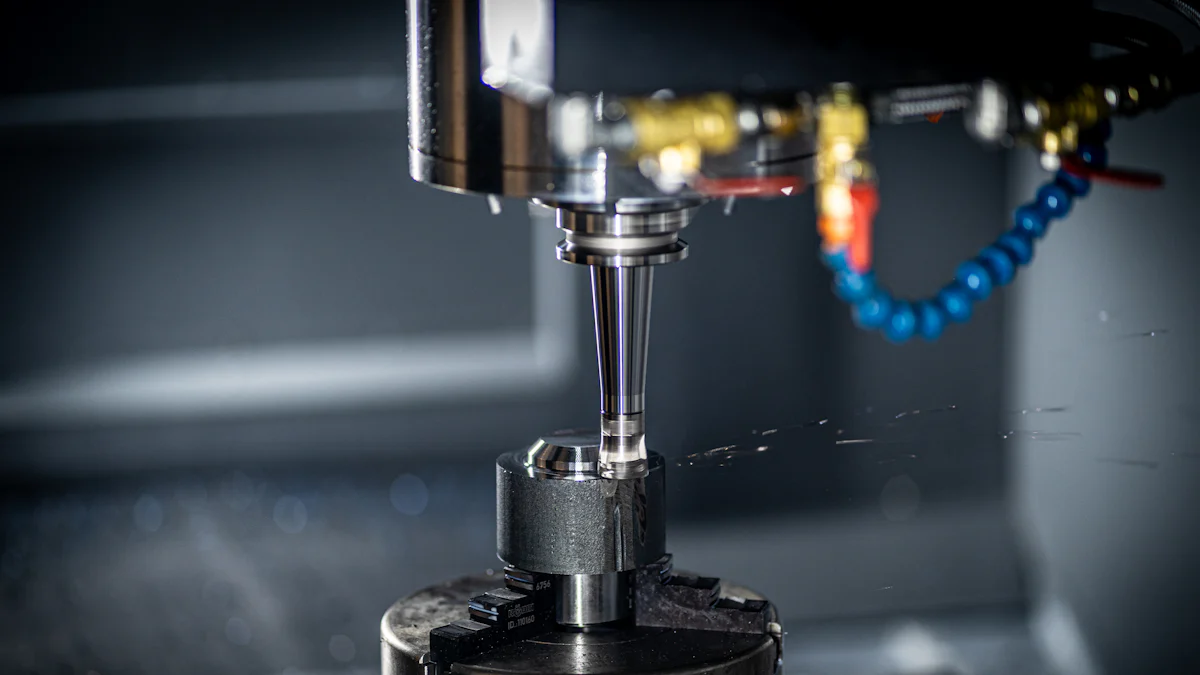

Milling Techniques

Milling is one of the most effective CNC machining methods for G10 Garolite. It allows you to create flat surfaces, grooves, and intricate geometries with precision. To achieve the best results, you should use carbide tools. These tools provide smoother finishes and withstand the abrasive nature of G10. High RPMs are essential during milling to maintain efficiency and accuracy. Secure workholding is also critical to prevent material movement during the process.

For improved surface quality, consider using cutting fluids like Kool Tool or mineral oil. These fluids reduce friction and heat, ensuring a clean finish. Proper ventilation and safety equipment are necessary due to the fiberglass components in G10. Milling G10 Garolite requires attention to detail, but it delivers excellent results when done correctly.

Drilling and Threading

Drilling and threading G10 Garolite can be challenging due to its brittle nature. The material's hardness often leads to tool wear, and improper techniques may cause delamination. To overcome these challenges, you should use specially coated tools like Titanium Nitride (TiN) or Titanium Aluminum Nitride (TiAlN). These coatings enhance tool durability and efficiency.

Step-by-step drilling minimizes the risk of delamination. Sharp tools and optimized cutting angles also help maintain material integrity. Coolant management is vital to prevent overheating and ensure stability. After drilling, fine grinding can reduce micro-cracks and prepare the surface for further treatment. By following these practices, you can achieve precise holes and threads without compromising the material's quality.

"G10 dust can pose health risks if inhaled. Always use a vacuum system and wear protective gear to manage the dust effectively."

Cutting and Shaping

Cutting and shaping G10 Garolite require precision and proper tooling. Securely clamping the material prevents movement during machining. Carbide or diamond-tipped tools are ideal for achieving neat and accurate cuts. CNC machines with 3-axis or higher capabilities ensure even cutting and smooth tool paths.

Controlling feed rates and spindle speeds is crucial to avoid overheating. Using the right coolant helps maintain stability and prevents deformation. Sharp tools and optimized cutting angles reduce the risk of delamination. Fine grinding before surface treatment improves the final product's quality by minimizing micro-cracks.

By following these best practices, you can shape G10 Garolite into complex designs with tight tolerances. This ensures high-quality results for applications in aerospace, electronics, and other industries.

Advanced Methods (e.g., Waterjet and Laser Cutting)

Waterjet and laser cutting are two advanced methods that enhance your ability to machine G10 Garolite with precision. These techniques allow you to achieve intricate designs and clean edges while minimizing material waste.

Waterjet Cutting

Waterjet cutting uses a high-pressure stream of water mixed with abrasive particles to cut through materials. This method works exceptionally well for G10 Garolite because it avoids heat generation, which can damage the material. The absence of heat ensures that the material retains its structural integrity and avoids warping.

You can use waterjet cutting to create complex shapes and tight tolerances. It is ideal for applications requiring smooth edges, such as aerospace components or medical devices. To achieve the best results, ensure the waterjet machine is calibrated correctly. Using a fine abrasive material, like garnet, improves cutting precision and reduces surface roughness.

Laser Cutting

Laser cutting uses a focused beam of light to cut through materials. This method offers unmatched precision and speed, making it suitable for intricate designs. However, G10 Garolite's fiberglass content can pose challenges during laser cutting. The heat generated may cause slight discoloration or edge charring.

To minimize these issues, you should use a laser cutter with adjustable power settings. Lowering the power reduces heat buildup and prevents damage. Proper ventilation is essential to remove fumes and particles generated during the process. Laser cutting is best suited for thin sheets of G10 Garolite or projects requiring detailed patterns.

Both methods provide unique advantages for CNC machining. Waterjet cutting excels in preserving material properties, while laser cutting offers speed and precision. By selecting the right method for your project, you can achieve high-quality results with G10 Garolite.

Tip: Always prioritize safety when using advanced cutting methods. Wear protective gear and ensure proper ventilation to manage dust and fumes effectively.

Tools and Equipment for CNC Machining G10 Garolite

Cutting Tools

Carbide-Tipped Cutters

Carbide-tipped cutters are essential for machining G10 Garolite. These tools handle the material's abrasive nature effectively, ensuring a smooth finish. Their hardness allows them to maintain sharpness longer, reducing tool wear. You can pair carbide tools with cutting fluids like Kool Tool or mineral oil to improve surface quality and minimize heat buildup. This combination ensures precision and extends the lifespan of your tools.

Diamond-Coated Tools

Diamond-coated tools excel in machining G10 Garolite due to their superior wear resistance. The abrasive properties of G10 can quickly degrade standard tools, but diamond coatings provide durability and efficiency. These tools are ideal for intricate designs and high-precision applications. Using diamond-coated endmills ensures clean cuts and reduces the risk of delamination. For best results, maintain proper feed rates and spindle speeds during machining.

CNC Machines

High-Speed CNC Machines

High-speed CNC machines are crucial for machining G10 Garolite. These machines maintain precision while handling the material's hardness. You should balance cutting speed and feed rate to minimize tool wear. Cooling systems help manage heat during machining, preventing material deformation. High-speed machines also allow you to achieve tight tolerances and smooth finishes, making them ideal for aerospace and electronics applications.

Dust Control Systems

Dust control systems are vital when working with G10 Garolite. The material's fiberglass content produces fine dust that can pose health risks. A well-designed dust extraction system ensures a safe working environment by capturing airborne particles. You should also use proper ventilation to remove fumes generated during machining. This setup protects both you and your equipment, ensuring efficient and safe operations.

Coolants and Lubricants

Recommended Coolant Types

Selecting the right coolant is essential for machining G10 Garolite. Coolants like Kool Tool and mineral oil reduce cutting temperatures and prevent tool burnout. Proper coolant management ensures machining stability and minimizes material deformation. You should also ensure adequate ventilation to manage the formaldehyde smell emitted during machining.

Importance of Proper Lubrication

Lubrication plays a key role in maintaining tool performance and material integrity. Effective lubrication reduces friction, preventing overheating and warping. It also extends tool life by minimizing wear. By using appropriate lubricants, you can achieve consistent results and enhance the overall efficiency of your CNC machining process.

Tip: Always prioritize safety by using proper ventilation and protective gear when working with G10 Garolite.

Safety Precautions for CNC Machining G10 Garolite

Managing Fiberglass Dust

Health Risks and Mitigation

Fiberglass dust generated during CNC machining poses significant health risks. Inhalation of fine particles can irritate your respiratory system, while skin contact may cause itching or rashes. To mitigate these risks, always wear protective gear. Respirators prevent inhalation of harmful particles, and protective clothing shields your skin from direct exposure. Proper ventilation is equally important to maintain a safe working environment.

• Key health risks include:

  • Respiratory irritation from inhaling fiberglass dust.

  • Skin irritation caused by fine dust particles.

You should also implement dust extraction systems to capture airborne particles at the source. This reduces the risk of exposure and ensures a cleaner workspace.

Ventilation and Dust Collection Systems

Effective ventilation and dust collection systems are essential for managing fiberglass dust. Mist collectors, such as those designed for composite machining, eliminate particles directly at the source. For light to medium dust concentrations, modular air cleaners like the Flowtron ACM provide reliable filtration. Portable solutions, such as the Rollatron dust collector, are ideal for smaller setups or mobile operations.

• Recommended systems include:

  • Mist Collectors: Capture dust during sanding, grinding, or routing.

  • Flowtron ACM: Filters fine airborne dust and fumes.

  • Pulsatron PFV: Suitable for a wide range of dust particles.

By using these systems, you can create a safer and more efficient workspace.

Personal Protective Equipment (PPE)

Respirators and Masks

Respirators are crucial for protecting your lungs from fiberglass dust. Choose high-quality respirators designed for industrial use. Disposable masks may not provide adequate protection. Always ensure a proper fit to maximize effectiveness.

Gloves and Eye Protection

Protective gloves prevent skin irritation caused by direct contact with fiberglass particles. Use gloves made from durable materials that resist abrasion. Eye protection, such as safety goggles, shields your eyes from airborne dust and debris. This reduces the risk of irritation or injury during machining.

• Essential PPE includes:

  • Respirators for respiratory protection.

  • Gloves to prevent skin contact.

  • Safety goggles for eye protection.

Machine Maintenance and Setup

Tool Sharpness and Calibration

Maintaining sharp tools is critical when machining G10 Garolite. Dull tools increase friction, leading to excessive heat and potential material damage. Regularly inspect and sharpen your tools to ensure optimal performance. Proper calibration of CNC machines also enhances precision and reduces wear on tools.

Regular Inspections and Maintenance

Frequent inspections of your CNC equipment help identify potential issues before they escalate. Check for wear on cutting tools and ensure dust collection systems function effectively. Routine maintenance extends the lifespan of your equipment and ensures consistent machining quality.

Tip: Always prioritize safety by combining proper PPE, ventilation systems, and regular machine maintenance. This approach minimizes risks and enhances efficiency.

Benefits of Proper CNC Machining for G10 Garolite

Enhanced Product Quality and Precision

Proper CNC machining ensures that G10 Garolite components meet the highest standards of quality and precision. You can achieve smooth surfaces, tight tolerances, and complex geometries with ease. Processes like CNC turning, milling, and drilling allow you to create intricate designs while maintaining dimensional accuracy.

G10 Garolite cannot be melted, making CNC machining the most effective method for shaping it. Fine grinding before surface treatment reduces micro-cracks and burrs, further enhancing the final product's quality. Whether you're crafting aerospace components or electronic parts, CNC machining ensures consistent results.

Tip: Always use sharp tools and proper coolants to maintain precision and avoid material damage.

Reduced Material Waste

Efficient CNC machining minimizes material waste, saving you time and resources. The precision of CNC machines allows you to cut only what is necessary, reducing scrap material. Advanced techniques like waterjet cutting and laser cutting help you achieve intricate designs without excessive waste.

By optimizing cutting angles and feed rates, you can prevent delamination and ensure clean cuts. This approach not only conserves material but also reduces costs in the long run. G10 Garolite's stability and machinability make it an excellent choice for projects where material efficiency is critical.

• Benefits of reduced waste include:

  • Lower production costs.

  • Environmentally friendly manufacturing.

  • Improved resource utilization.

Increased Efficiency and Longevity of Tools

Using the right tools and techniques extends the lifespan of your equipment. Carbide and diamond-tipped tools resist wear and maintain sharpness, even when machining abrasive materials like G10 Garolite. These tools allow you to make precise cuts without frequent replacements.

To further enhance tool efficiency, you should:

1. Use specially coated tools like Titanium Nitride (TiN) for added durability.

2. Choose the right coolant to prevent overheating and tool burnout.

3. Optimize cutting angles to reduce stress on the material and tools.

Maintaining a balance between cutting speed and feed rate also minimizes heat buildup, reducing wear on your tools. Implementing cooling systems or lubricants ensures smooth operations and prevents material warping. By following these practices, you can maximize tool efficiency and achieve consistent results.

Note: Proper CNC machining not only improves tool longevity but also enhances the overall efficiency of your production process.

G10 Garolite offers unmatched strength, durability, and versatility, making it an excellent choice for CNC machining. Its compatibility with processes like milling, drilling, and grinding ensures precise results for intricate designs. You can achieve optimal performance by regulating cutting speed and feed rate to prevent heat buildup and using proper clamping to reduce vibrations.

Each machining process, from turning to sandblasting, enhances the material's usability. For example, CNC turning allows precise contouring, while grinding improves surface smoothness. By using the right tools and techniques, you ensure accuracy and extend tool life. Prioritizing safety measures, such as dust control and protective gear, further enhances your machining experience.

Adopting these best practices ensures high-quality results and maximizes the potential of G10 Garolite in your projects.

FAQ

What makes G10 Garolite suitable for CNC machining?

G10 Garolite offers high strength, durability, and machinability. Its resistance to heat, chemicals, and moisture ensures consistent performance during machining. You can shape it into intricate designs while maintaining precision and stability.

How do you manage fiberglass dust when machining G10 Garolite?

Use dust collection systems and proper ventilation to capture airborne particles. Wear respirators and protective clothing to avoid inhalation or skin irritation. These precautions ensure a safer workspace.

Which tools work best for machining G10 Garolite?

Carbide-tipped and diamond-coated tools perform best. They resist wear and maintain sharpness when cutting abrasive materials like G10. Use these tools to achieve clean cuts and extend tool life.

Can you use laser cutting for G10 Garolite?

Yes, but it requires careful adjustments. Lower the laser power to reduce heat buildup and edge charring. Ensure proper ventilation to manage fumes and particles during the process.

Why is coolant important in CNC machining G10 Garolite?

Coolant reduces friction and heat during machining. It prevents material deformation and extends tool life. Use recommended coolants like mineral oil to achieve smooth finishes and consistent results.

Tip: Always prioritize safety and proper tool selection when working with G10 Garolite. This ensures high-quality outcomes and protects your health.
