How to Prepare Your Design Files for CNC Machining

Preparing your design files correctly is essential for CNC machining. Accurate files ensure parts fit together seamlessly, preventing assembly errors like gaps or misalignments. This meticulous preparation enhances production efficiency, reduces errors, and saves time. By focusing on proper file preparation, you can achieve high-quality machining results while avoiding costly mistakes. Wondering how to get started? Understanding the requirements and optimizing your files will set you up for success in CNC machining.

Key Takeaways

Getting your files ready is very important for CNC machining. It helps turn designs into accurate parts, cutting mistakes and saving time.
Use the right file types like STEP, DXF, or DWG. These keep your design correct and work well with CNC machines.
Add tolerances to your drawings based on what the part does. Don’t make tolerances too tight to keep things cheaper and simpler.
Make your designs better by using simple shapes and matching features to common tool sizes. This saves time and lowers costs.
Talk clearly with your CNC service provider. Share detailed project info to make production easy and smooth.

Understanding CNC Machining

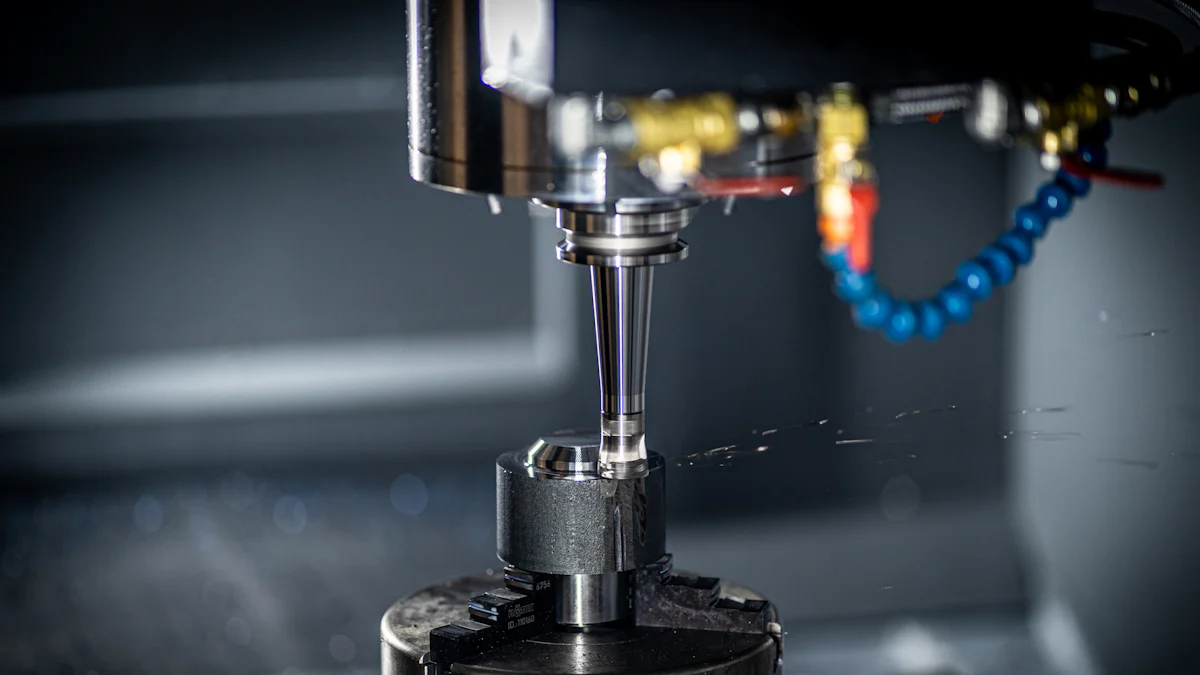

What is CNC Machining?

CNC machining is a manufacturing process where computer-controlled machines create precise parts by removing material from a workpiece. These machines follow programmed instructions to cut, drill, or mill materials like metal, plastic, or wood. CNC stands for "Computer Numerical Control," highlighting the role of software in guiding the machine's movements. This process ensures high accuracy and repeatability, making it ideal for industries like aerospace, automotive, and medical devices.

CNC machining offers flexibility in creating complex designs. However, it has some limitations due to the mechanics of cutting tools. For example, tool geometry and access can restrict certain shapes or features. Understanding these constraints helps you design parts that are both functional and manufacturable.

CNC offers great design flexibility, but there are a few restrictions. These limitations relate to the basic mechanics of the cutting process and mainly concern tool geometry and tool access.

Why File Preparation Matters in CNC

File preparation is crucial for CNC machining because it directly impacts the quality and efficiency of the process. A well-prepared file ensures the machine interprets your design correctly, reducing errors and material waste. It also minimizes machining time, which lowers production costs.

Designing for CNC machining requires attention to details like material selection, tool access, and geometry optimization. These factors influence how the machine interacts with the material and whether it can achieve the desired results. While no universal standards exist in CNC machining, following best practices ensures your design meets industry expectations and machine capabilities.

Best practices improve design quality.
Machines and techniques evolve constantly.
Adapting to these changes ensures better results.

Key Requirements for CNC Machining

To prepare a design file for CNC machining, you must meet specific requirements. These ensure compatibility with the machine and the production process. Below is a table summarizing key specifications:

Requirement	Specification
Minimum Hole Diameter	2.5 mm (Micro-machining below this)
Thread Diameter	Minimum M6 or 2 mm
Tolerance	±0.025 mm (typical)
Text Consideration	Avoid text to reduce costs; use bold sans-serif fonts for better results.

Meeting these requirements ensures your design file works seamlessly with CNC machines. For example, maintaining proper tolerances prevents parts from being too tight or loose. Avoiding text in your design reduces machining complexity and costs. By adhering to these guidelines, you can streamline the CNC machining process and achieve high-quality results.

File Preparation Essentials

Supported File Formats for CNC

Choosing the right file format is essential for successful CNC machining. G-code files are among the most widely used formats. They contain detailed instructions, such as coordinates, feed rates, and tooling paths, which guide the CNC machine's operations. These files ensure precise machining by translating your design into actionable commands.

Other commonly used formats include .dwg, .dxf, .stp, .igs, and .stl. These formats allow seamless data transfer between CAD/CAM software and CNC machines. For example, .dxf and .dwg files are ideal for technical drawings, as they preserve intricate details and dimensions. Using these formats ensures your design remains accurate and compatible with CNC systems.

Recommended Software and Settings

To prepare your design files, you need reliable CAD and CAM software. Popular tools include AutoCAD, SolidWorks, Fusion 360, and Mastercam. These programs allow you to create and modify 3D models or technical drawings with ease. Once your design is complete, CAM software generates toolpaths that guide the CNC machine.

Exporting your files in the correct format is crucial. For instance, .dxf and .dwg formats are preferred for cutting materials like steel or aluminum. Ensure your software settings include the correct scale and layer representation. This step guarantees that all design elements are accurately translated into the machining process.

Integrating CAD and CAM software streamlines the workflow. CAD handles the design phase, while CAM converts the design into machine-specific instructions. This integration minimizes errors and ensures tight tolerances during machining.

Ensuring File Compatibility with CNC Machines

File compatibility is critical for smooth CNC operations. Post-processor issues often arise when the wrong post-processor is selected for the CNC machine. Always verify that the post-processor matches your machine's control software. Additionally, check the G-code for syntax errors or incompatible commands.

MCode definitions can also cause problems. Ensure the MCode commands in your G-code align with your CNC machine's controller. If the machine's buffer becomes overloaded, simplify the G-code or increase the buffer size. After upgrading your PC, confirm that the CNC machine's drivers are compatible with the new operating system.

By addressing these compatibility issues, you can avoid delays and ensure your design files work seamlessly with CNC machines.

Design Considerations for CNC Machining

Tolerances and Dimensions

Tolerances play a critical role in CNC machining. They define the allowable variation in a part's dimensions, ensuring it functions as intended. For example, CNC routers and lathes typically achieve tolerances of ±0.005″ or 0.13 mm, while gasket cutting tools allow up to ±0.030″ or 0.762 mm. Understanding these tolerances helps you determine the level of precision required for your design. Parts like engine components demand tight tolerances to maintain dimensional accuracy, while less critical parts can tolerate greater variation.

When preparing your technical drawing, always specify tolerances based on the part's function. Overly tight tolerances increase machining complexity and cost. On the other hand, loose tolerances may compromise the part's performance. Striking the right balance ensures your design meets both functional and manufacturing requirements.

Geometry and Features

The geometry of your design significantly impacts the CNC machining process. Complex shapes, such as sharp corners or deep cavities, can lead to tool wear and inaccuracies. Thin walls and small features are also challenging to machine, especially in harder materials. These issues can result in deformation or dimensional inaccuracies.

To improve machinability, consider rounding corners and reducing cavity depth. Using fillets instead of sharp corners not only enhances durability but also reduces stress concentrations. Additionally, aligning your design with standard tool sizes simplifies programming and ensures better results. Incorporating GD&T (Geometric Dimensioning and Tolerancing) symbols in your technical drawing helps machinists understand how specific features should be created and inspected.

Material-Specific Adjustments

Different materials require unique adjustments during CNC machining. Metals like aluminum are easier to machine compared to steel, which demands more robust tools. Plastics, while flexible, may lack the strength of metals and require careful handling to avoid deformation. When designing for CNC, consider the material's properties to ensure optimal results.

Part orientation also affects machining outcomes. Designing parts for single setups minimizes repositioning, enhancing precision and reducing production time. For example, exporting your design files in formats like DXF or DWG ensures accurate cutting of materials such as steel and aluminum. Simplifying fixture setups and aligning features with standard tool sizes further streamlines the machining process.

By tailoring your design to the material and machining process, you can achieve high-quality results while minimizing errors and costs.

Best Practices for CNC File Optimization

Reducing Machining Time

Reducing machining time is essential for improving efficiency and meeting production deadlines. You can achieve this by implementing several strategies:

Minimize work-in-process inventory by organizing your workspace for smooth material flow. This reduces delays and keeps production moving.
Use tooling and toolpath strategies to optimize cycle times. Selecting the right tools and refining toolpaths ensures faster material removal.
Leverage high-speed machining techniques. Specialized tools and higher spindle speeds allow you to machine parts more quickly without sacrificing quality.
Automate repetitive tasks with robotics. Automation enhances consistency, reduces labor costs, and increases throughput.

Additionally, batch manufacturing can save time by reducing the number of setups required. Multi-axis machining also simplifies complex geometries, cutting down on machining time. By following these guidelines, you can streamline your CNC machining process and boost productivity.

Improving Accuracy and Quality

Achieving high accuracy and quality in CNC machining requires attention to detail. Start by selecting tools that match the material and cutting conditions. Using CAM software to optimize toolpaths ensures precision and efficiency. Regularly calibrating your CNC machines helps maintain consistent results.

Environmental factors, such as temperature and humidity, can affect machine performance. Monitoring these conditions minimizes errors. Upgrading to a five-axis machine reduces setup time and improves accuracy for intricate designs. Tool presetters also enhance precision by ensuring proper tool placement.

Well-trained personnel play a critical role in maintaining quality. Organized operators reduce errors during machining. Predictive maintenance further improves accuracy by preventing unexpected downtime and extending tool life. These best practices for CNC machining will help you produce parts that meet exact specifications.

Lowering Costs

Optimizing your design files can significantly lower CNC machining costs. Simplify part designs to reduce complexity and machining time. Avoid intricate geometries that require custom fixtures or multi-axis systems. Fewer setups and less specialized tooling also cut expenses.

Choosing materials that are easier to machine, such as aluminum, can save time and money. Aligning features with standard tool sizes minimizes the need for custom tools. Following these guidelines ensures cost-effective production without compromising quality.

By applying these best practices for CNC machining, you can reduce machining time, improve accuracy, and lower costs, resulting in a more efficient and profitable process.

Finalizing and Submitting CNC Files

Reviewing and Finalizing the Design File

Before submitting your design for cnc machining, you must review and finalize it carefully. Start by ensuring your design uses standard tooling. This simplifies programming and reduces machining times. Keep your design within common material sizes to minimize waste and lower costs. Reducing the number of fixturing setups also saves time and resources during the cnc machining process.

Follow these steps to finalize your file:

Export your design to a CNC-compatible CAD file format, such as STEP.
Prepare a technical drawing that includes critical dimensions and tolerances.
Upload your files to an online CNC machining service to get a quote and confirm specifications.

These steps ensure your design is ready for machining and meets the necessary requirements.

Communicating with the CNC Machining Service

Clear communication with the cnc machining service is essential for accurate results. Provide detailed information about your project. This includes production capacity, material specifications, and order details. Accurate production planning ensures manageable progress and reduces delays. Optimizing production processes also minimizes waste and enhances efficiency.

Strengthen communication by sharing critical details, such as tolerances, material types, and machining priorities. Regular updates help identify potential issues early. For example, stable supply chain relationships can prevent material delays, while advanced production management systems improve overall efficiency. By maintaining open communication, you ensure the cnc machining process runs smoothly.

Submitting the File Correctly

Submitting your design file correctly avoids delays and errors. Use file formats like DXF or DWG to maintain design integrity and details. Configure your CAD software to export files with the correct scale and layer representation. If your design includes bitmap images, convert them to vector graphics for precise cutting paths.

To streamline the submission process, follow these steps:

Export your design to a CNC-compatible CAD file format, preferably STEP.
Include a technical drawing with critical dimensions and tolerances.
Annotate only the most important dimensions to simplify communication with the manufacturer.

These practices ensure your design file is ready for cnc machining and reduces the risk of errors during production.

Proper file preparation is essential for successful CNC machining. It ensures your design translates seamlessly into precise, high-quality parts. By understanding CNC requirements, optimizing your files, and considering material-specific adjustments, you can streamline the machining process and achieve better results.

Key takeaways include:

Efficient workflows reduce downtime and improve turnaround time.
Optimized designs minimize waste and lower costs.
Precise machining ensures high standards in finished products.

Applying these practices enhances workflow efficiency, reduces material waste, and accelerates time-to-market. Start refining your design files today to unlock the full potential of CNC machining.

FAQ

What file format should I use for CNC machining?

You should use formats like STEP, DXF, DWG, or STL. These formats ensure compatibility with most CNC machines and preserve design accuracy. Always confirm with your CNC service provider to avoid issues.

How do I ensure my design meets CNC machining tolerances?

Specify tolerances in your technical drawing based on the part's function. Avoid overly tight tolerances unless necessary. Tight tolerances increase costs and machining complexity. Use standard tolerances like ±0.005″ for most parts.

Can I include text in my CNC design?

Including text is possible but not recommended. Text increases machining time and costs. If necessary, use bold sans-serif fonts and ensure the text size is large enough for the cutting tool to handle.

What materials work best for CNC machining?

Materials like aluminum, brass, and plastics are easier to machine. Steel and titanium require more robust tools and longer machining times. Choose materials based on your part's function and budget.

How can I reduce CNC machining costs?

Simplify your design by avoiding complex geometries. Use standard tool sizes and materials that are easy to machine. Minimize the number of setups required by designing for single setups whenever possible.
