SUS303 is a free-machining austenitic stainless steel alloy that is popular due to its excellent machinability and good corrosion resistance. It is part of the 300 series of stainless steels, which are known for their high corrosion resistance and versatility. Here's a detailed description covering its composition, properties, and common applications:
Composition:
Iron (Fe): The base element, comprising the majority of the alloy.
Chromium (Cr): Approximately 17–19%: Provides corrosion resistance and oxidation resistance.
Nickel (Ni): About 8–10%: Enhances the alloy's toughness and corrosion resistance.
Sulfur (S): Added for improved machinability.
Carbon (C): Around 0.15% maximum: Provides hardness and strength.
Manganese (Mn): Typically less than 2%: Contributes to the alloy's strength and hardenability.
Properties:
Machinability: Excellent machinability, mainly due to the addition of sulfur, which forms manganese sulfides, aiding in chip breaking during machining operations.
Corrosion Resistance: Offers good corrosion resistance in mildly corrosive environments. However, its resistance may be lower compared to some other stainless steel grades due to the sulfur content.
Heat Treatability: Limited heat treatability, primarily used in the annealed condition.
Weldability: Fair weldability, although precautions should be taken to prevent intergranular corrosion in the heat-affected zone.
Formability: Good formability and can be cold worked to some extent.
Common Applications:
SUS303 stainless steel finds use in various industries and applications, particularly where excellent machinability is required:

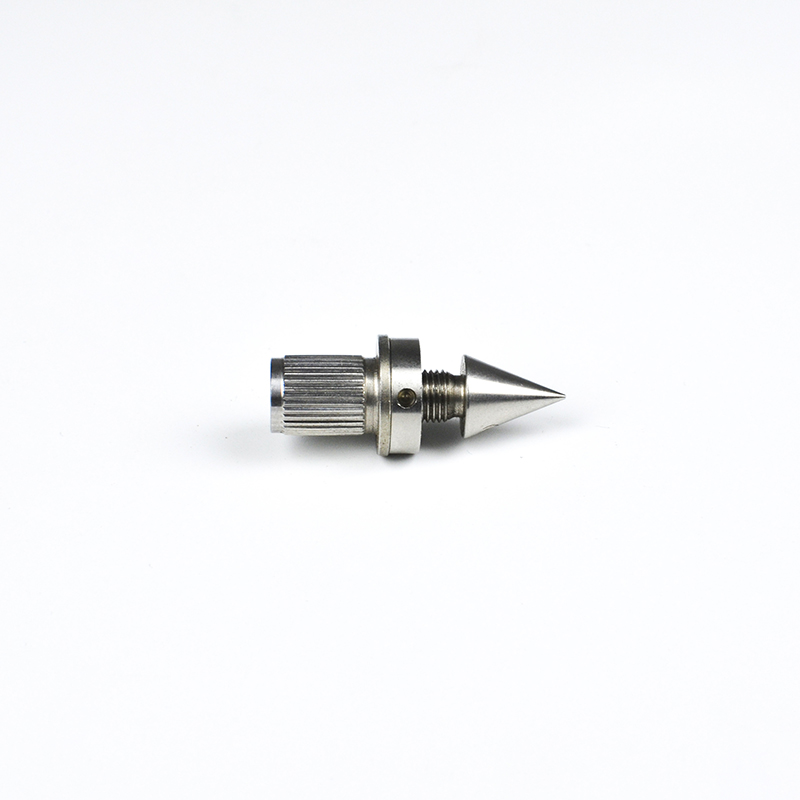

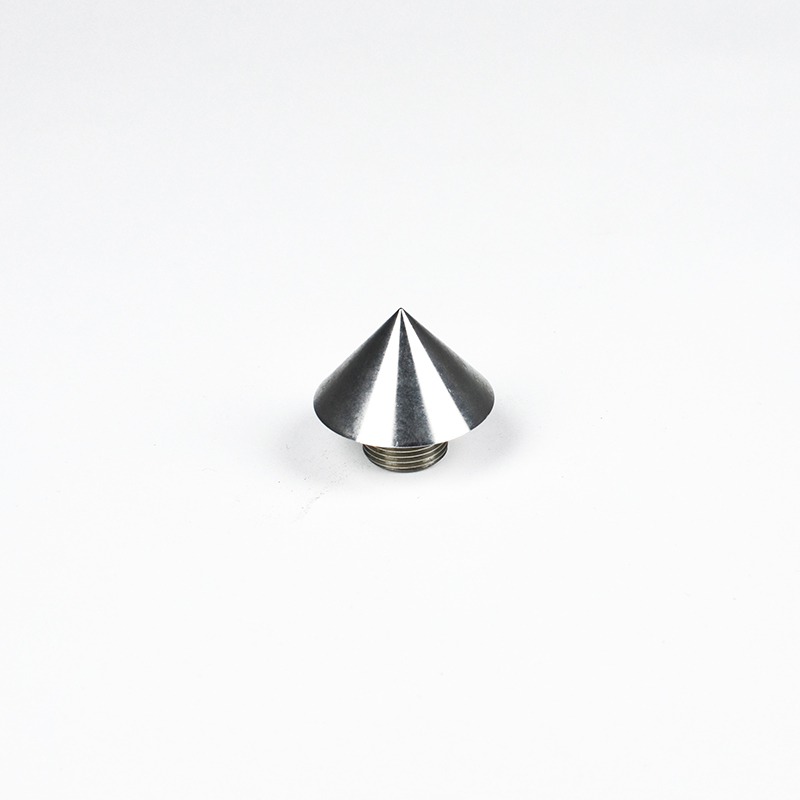

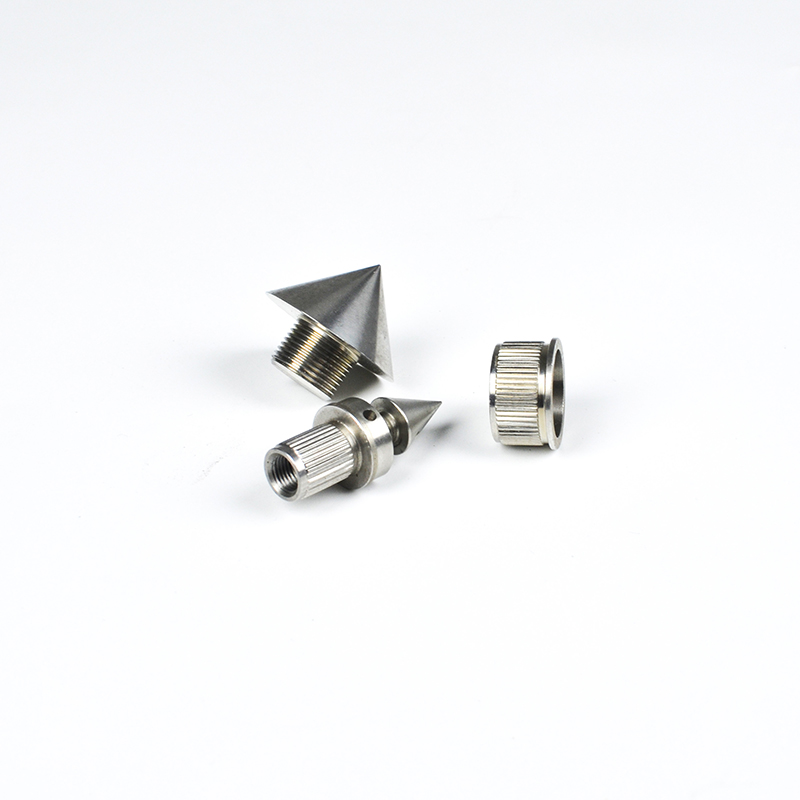

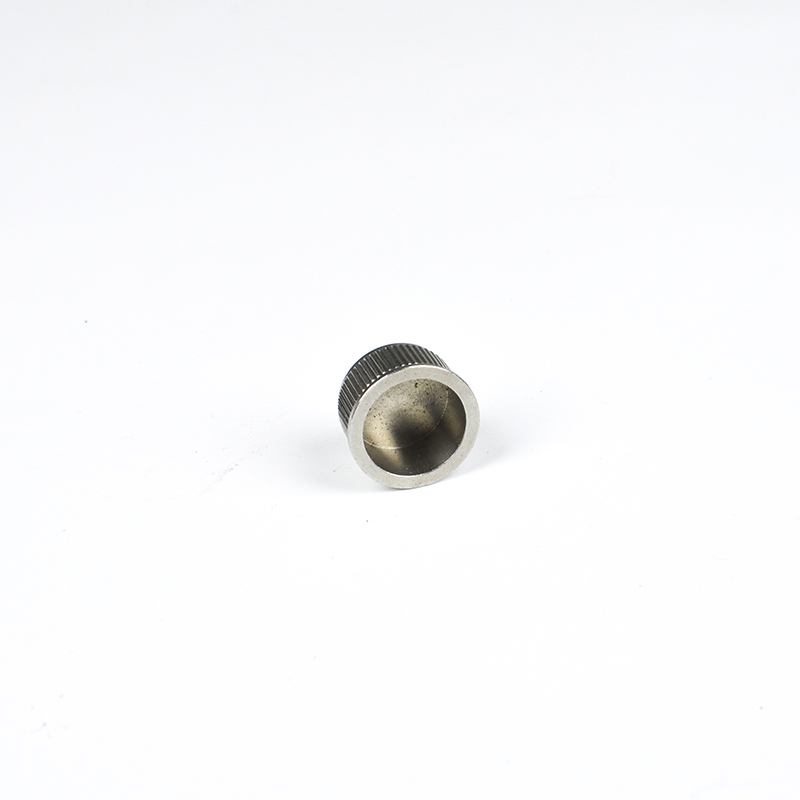

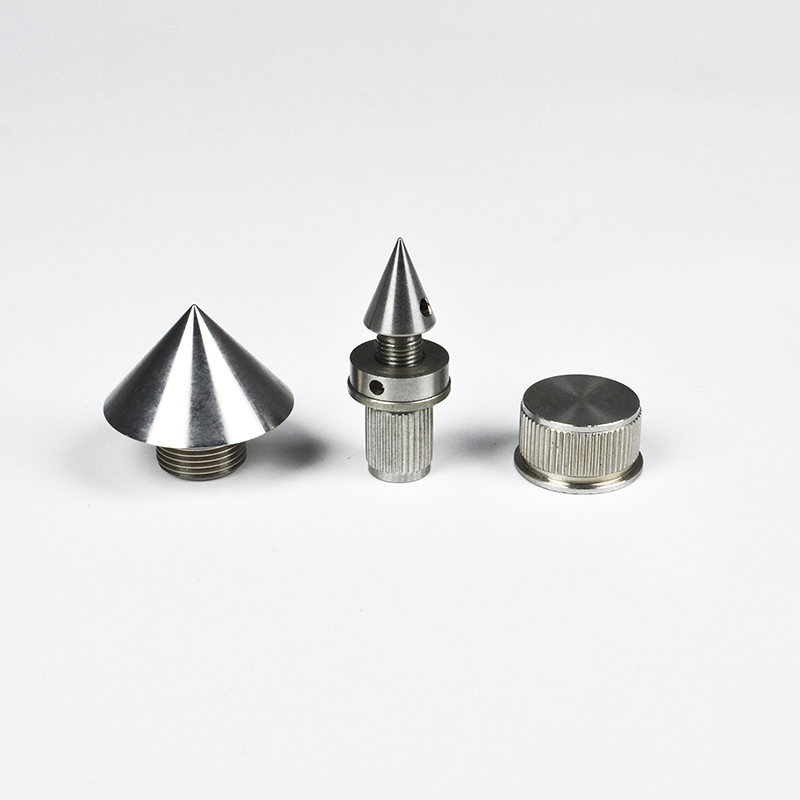

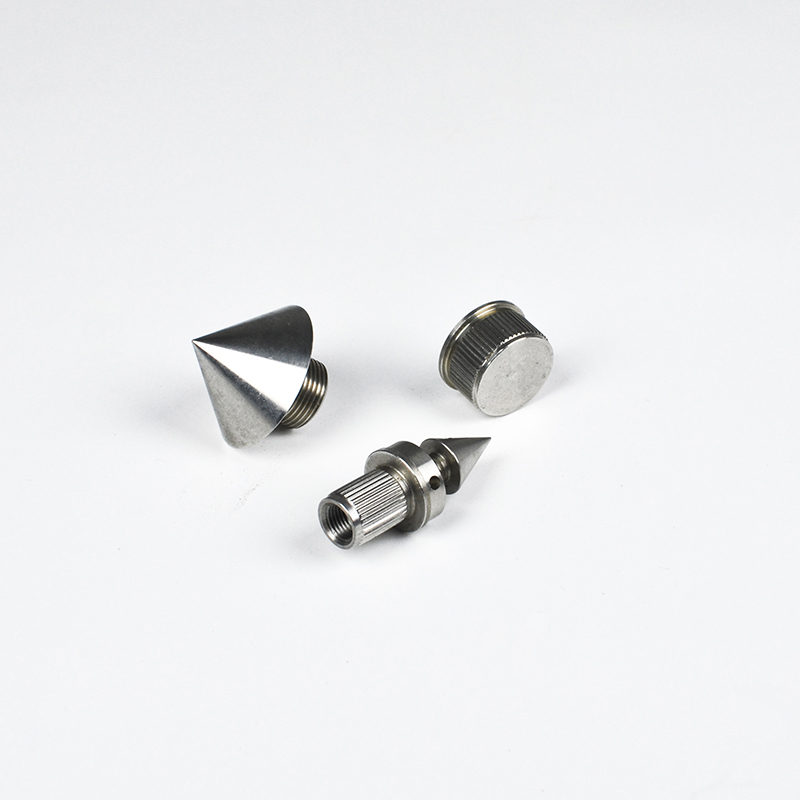

Machined Components: Shafts, nuts, bolts, screws, fittings, and other precision components in machinery and equipment.
Electronic Components: Some components in electronics and electrical industries due to its machinability and corrosion resistance.
Automotive Industry: Parts requiring machining, such as fasteners and fittings.
Medical Devices: Certain components where machinability is crucial.
Summary:
SUS303 is a free-machining stainless steel alloy known for its outstanding machinability due to the addition of sulfur. While it offers good corrosion resistance and formability, its main highlight is its ease of machining, making it suitable for applications where intricate and precision machining is necessary. However, its corrosion resistance might not be as high as other stainless steel grades due to the sulfur content, making it more suitable for specific applications where machining is a primary consideration.
