We have a few clients experiencing high drawing costs from their local services. As a result, they plan to send us parts that require bulk production and have requested our assistance in creating drawings for replication. The meticulous nine-step procedure involved in replicating an existing part through CNC machining guarantees accuracy and precision in the production process.

The initial step involves the precise measurement of the existing part using specialized tools like calipers, micrometers, or a coordinate measuring machine (CMM). All critical measurements, encompassing lengths, widths, diameters, angles, and hole sizes, are diligently recorded to form the basis for replication.

Following this, a Computer-Aided Design (CAD) software comes into play, facilitating the creation of a detailed 2D drawing or a comprehensive 3D model based on the previously gathered measurements. This stage involves inputting dimensions and features with the aim of replicating the existing part as faithfully as possible.

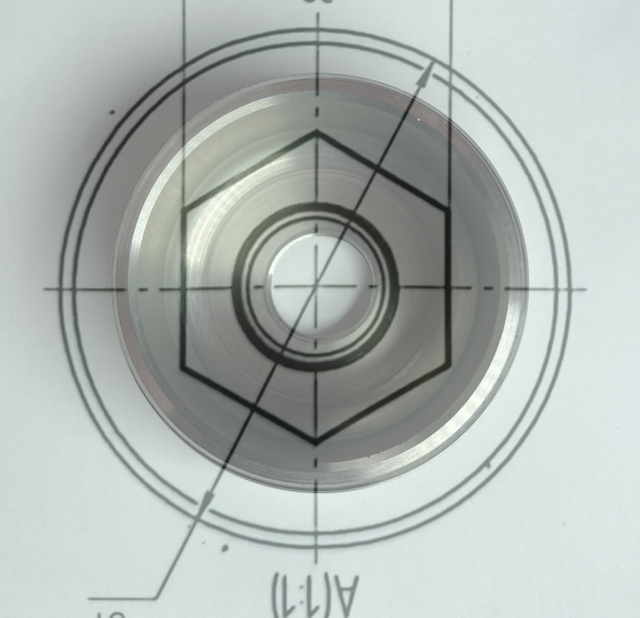

Validation becomes pivotal in the third step, as the created CAD drawing/model is compared or overlaid onto the existing part. This comparative analysis ensures alignment in dimensions, shapes, and features, prompting adjustments in the CAD model if necessary for accurate replication.

Identifying the material and considering tolerances come next, where the material used for the existing part is determined and specified in the drawing. Tolerance requirements for manufacturing the part are considered and, if material specifications are unknown, consultation with material specialists or conducting material testing is recommended for proper identification.

Choosing the appropriate CNC machining processes follows suit, involving the selection of suitable methods such as milling, turning, or drilling based on the intricacies and complexities of the part. This step also entails the decision-making regarding tools and machines essential for precise replication.

The consideration of design modifications comes into play as the process progresses, prompting an assessment of whether any alterations or enhancements are needed for the part. Minor adjustments may be suggested to augment functionality, ease of manufacturing, or the overall durability of the part.

Subsequently, a CNC program is generated through Computer-Aided Manufacturing (CAM) software, acting as a guide for the CNC machine in manufacturing the part. This program includes instructions for tool paths, cutting speeds, feeds, and other crucial details.

Prior to full-scale production, quality control and testing take precedence, prompting the creation of a prototype or a small batch of parts for meticulous testing of the CNC drawing and manufacturing process. This stage involves rigorous quality checks and necessary adjustments to ensure accuracy.

Finally, the process culminates in documentation and production, where the finalized CNC drawing, comprising all specifications, dimensions, tolerances, and machining instructions, is documented. Production of the parts commences based on the finalized drawing, ensuring strict adherence to the documented instructions for precision in manufacturing.
