Classification of Machining And Machining Process Products

Machining processes are often classified based on the type of operation performed, the tools used, and the techniques involved. Here's a general classification of machining processes and the products they create:

1. Traditional Machining Processes:

• Turning: Produces cylindrical components such as shafts, bolts, and screws.

• Milling: Used to create flat surfaces, slots, and complex shapes like gears and molds.

• Drilling: Creates holes in materials for various purposes such as assembly or fluid passage.

• Grinding: Precision finishing process for achieving tight tolerances and smooth surfaces on materials like metals and ceramics.

• Boring: Enlarging existing holes or cylinders to precise dimensions.




2. Non-Traditional Machining Processes:

• Electrical Discharge Machining (EDM): Forms complex shapes in electrically conductive materials by using electrical discharges.

• Laser Cutting and Welding: Uses high-intensity laser beams to cut or weld materials with high precision.

• Water Jet Cutting: Utilizes a high-pressure stream of water mixed with abrasive particles to cut through various materials.

• Ultrasonic Machining: Uses high-frequency vibrations to remove material from brittle or hard materials.




3. Advanced Machining Processes:

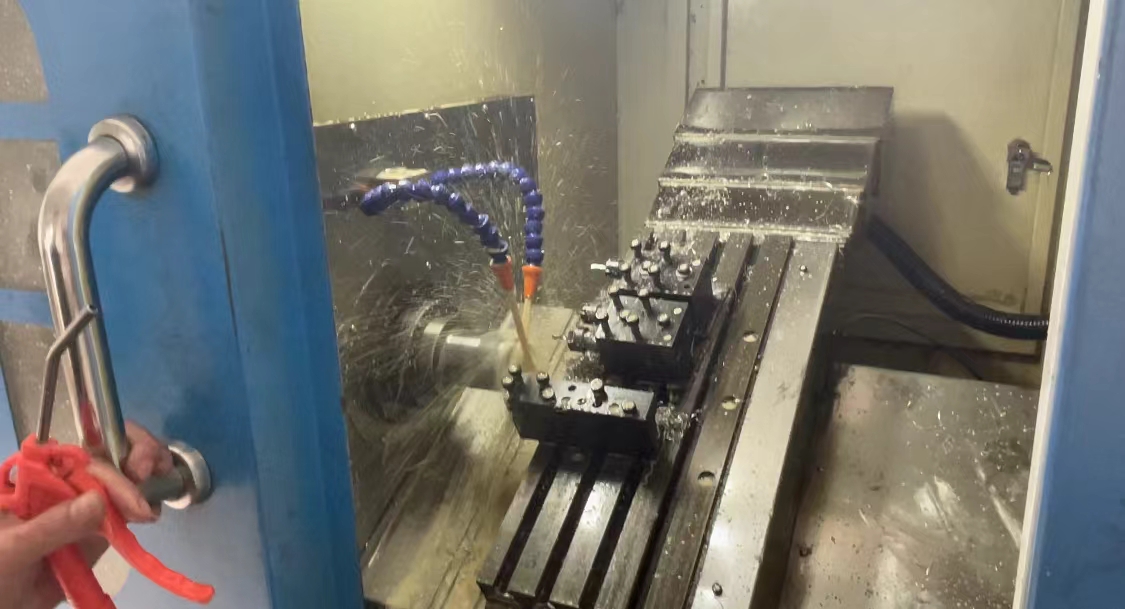

• Computer Numerical Control (CNC) Machining: Automated machining processes controlled by computer programs, enabling high precision and complex geometries.

• 3D Printing/Additive Manufacturing: Builds parts layer by layer directly from digital models, allowing for complex geometries and customization.

• Chemical Machining: Utilizes chemical etchants to selectively remove material from the workpiece, often used for intricate shapes or delicate materials.

Products produced from these machining processes vary widely depending on factors such as the material being machined, the specific process used, and the desired specifications of the final product. Common products include:

• Mechanical Components: Shafts, gears, bearings, screws, bolts, and other parts used in machinery and equipment.

• Automotive Parts: Engine components, transmission parts, brake components, and chassis parts.

• Aerospace Components: Aircraft engine parts, structural components, and interior fittings.

• Medical Devices: Surgical instruments, prosthetic limbs, implants, and medical equipment.

• Electronics Components: Printed circuit boards (PCBs), connectors, and housings.

• Tooling: Molds, dies, jigs, and fixtures used in manufacturing processes.

These are just a few examples, as machining processes are used across a wide range of industries to produce countless products with varying levels of complexity and precision.
