CNC machining is an excellent method for producing high-quality metal flashlights due to its precision, versatility, and ability to work with various materials. Here's a detailed overview of how CNC machining can be applied to metal flashlight production:
Precision and Consistency: CNC machining ensures that each part of the flashlight is made to exact specifications, resulting in consistent quality across all units.
Complex Geometries: CNC machines can create intricate designs and detailed features that are difficult to achieve with other manufacturing methods.
Material Variety: CNC machining can work with a wide range of metals commonly used in flashlights, such as aluminum, stainless steel, titanium, and copper.
Surface Finish: CNC machining can produce excellent surface finishes, which are important for both the functionality and aesthetics of flashlights.

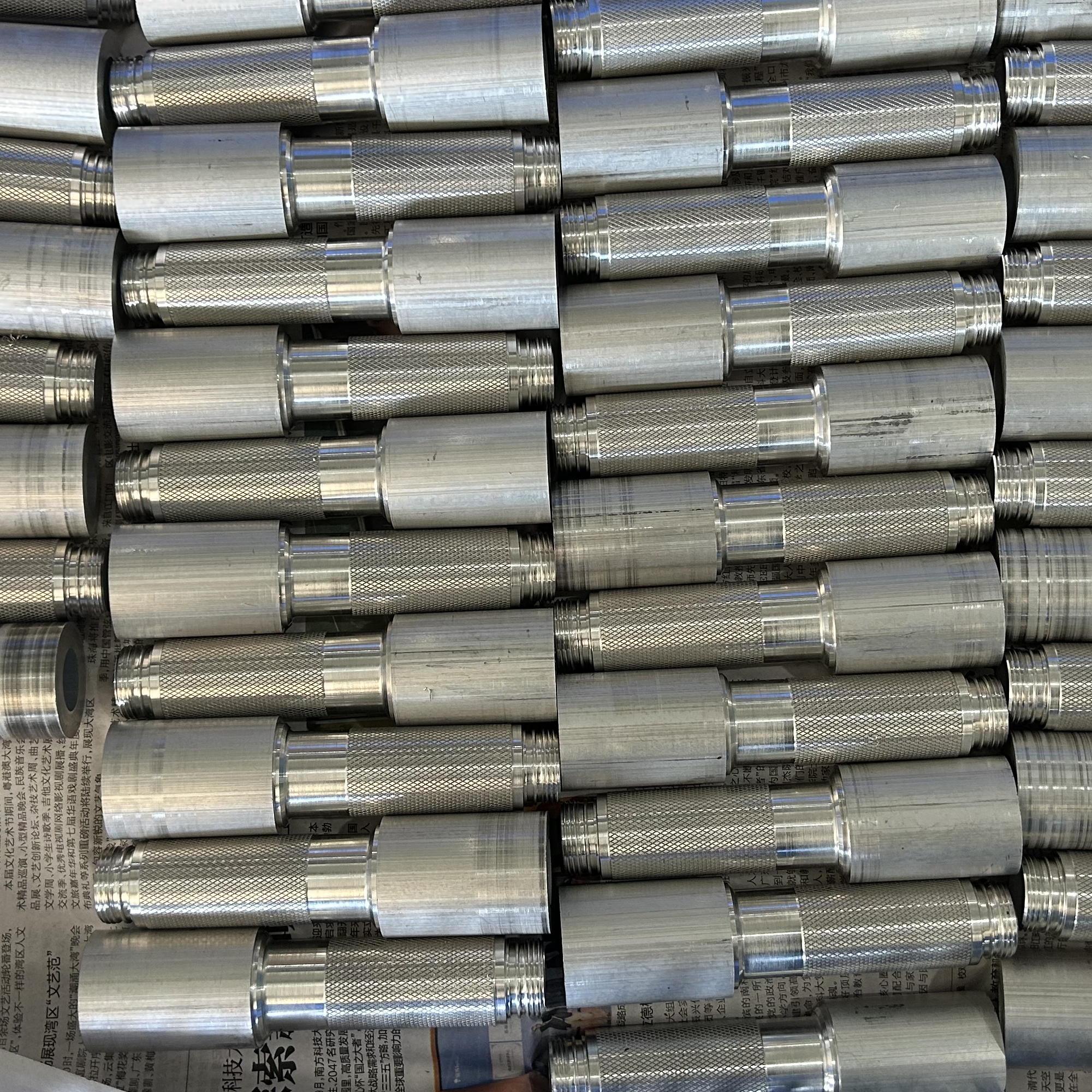

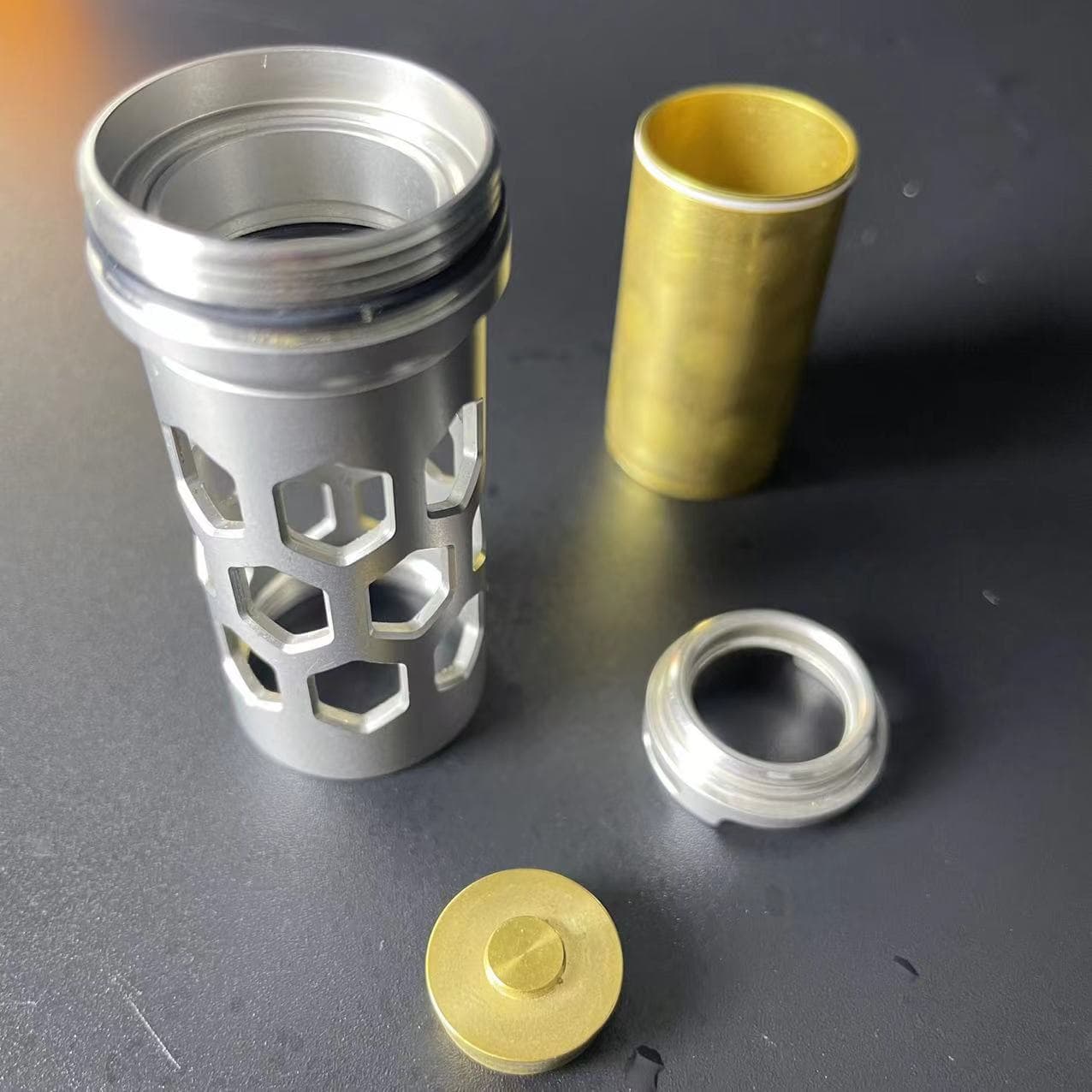

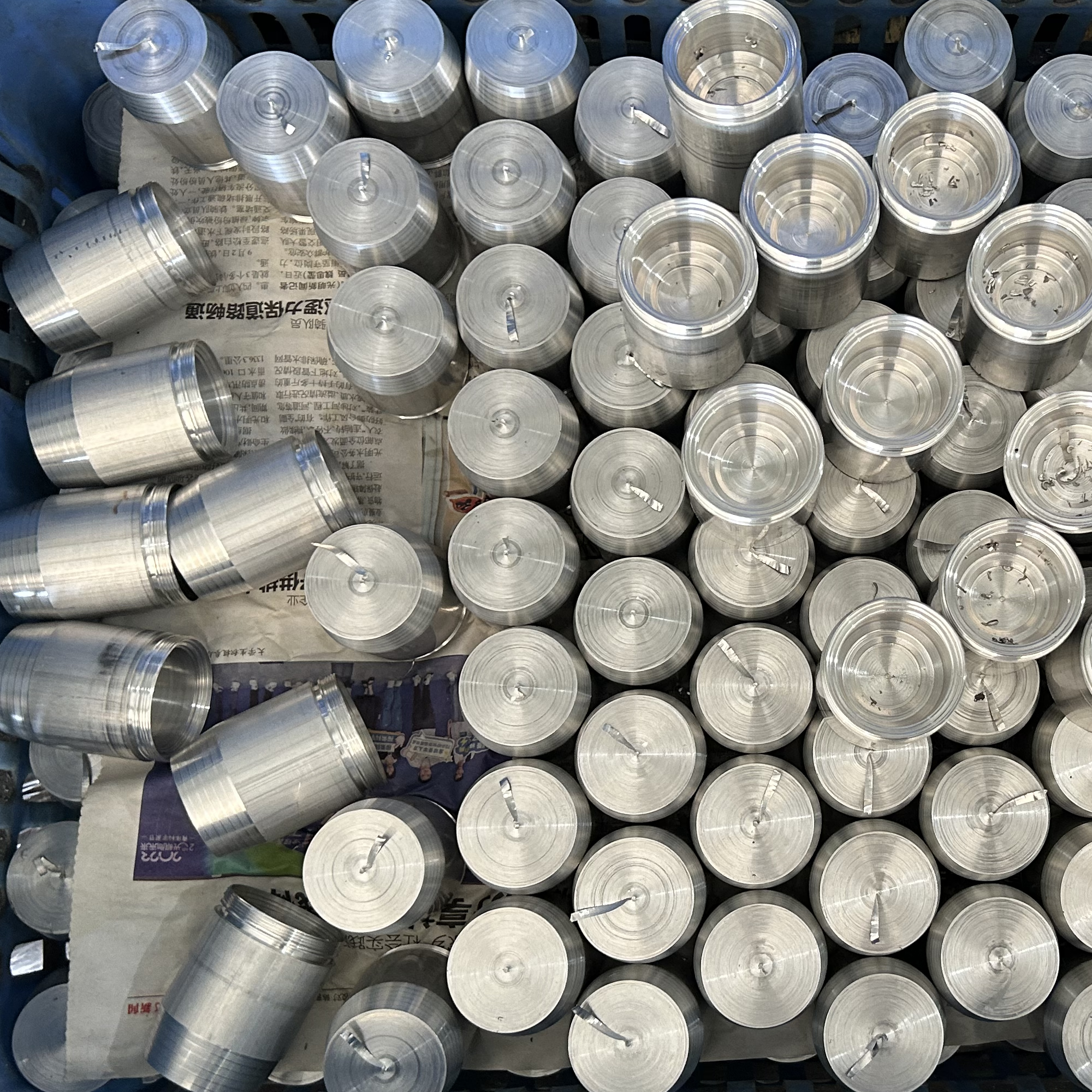

Body (Housing)
Material: Commonly aluminum due to its lightweight, strength, and corrosion resistance, but also stainless steel and titanium for higher-end models.
Machining Process: Turning and milling operations are typically used to create the cylindrical shape and detailed features such as knurling for grip, threads for assembly, and slots for mounting clips or accessories.
Head
Material: Same as the body for consistency.
Machining Process: Turning and milling to create the shape, threading for lens attachment, and precise cavities for LED placement and reflector.
Tail Cap
Material: Often the same as the body.
Machining Process: Similar to the body, involving turning and milling. It includes features for battery access, and threading to attach to the body.
Reflector
Material: Usually aluminum or other reflective metals.
Machining Process: Precision turning to achieve the parabolic shape necessary for directing light efficiently.
Heat Sink
Material: Copper or aluminum for good thermal conductivity.
Machining Process: Milling to create fins and other features that increase surface area for better heat dissipation.
Turning
Used for creating cylindrical parts like the body, head, and tail cap. CNC lathes can produce precise external and internal diameters and threading.
Milling
Used for creating complex shapes, slots, and holes. CNC mills can also add features like knurling or surface textures.
Drilling
Used for creating holes for screws, buttons, and other components.
Threading
Both internal and external threading for assembly parts. CNC machines ensure that threads are precise and consistent.
Surface Finishing
Processes like anodizing (for aluminum), polishing, and bead blasting are often applied post-machining to improve corrosion resistance and aesthetics.
Design and Prototyping
Create detailed CAD models of all parts.
Use CNC machining to produce prototypes for testing and refinement.
Programming
Convert CAD designs into CNC machine instructions (G-code).
Simulate machining processes to optimize tool paths and minimize errors.
Machining
Set up CNC machines with the appropriate tools and materials.
Execute the machining process, producing the parts with high precision.
Post-Processing
Perform surface finishing as needed.
Assemble the flashlight components, ensuring proper fit and function.
Quality Control
Inspect each part for dimensional accuracy and surface quality.
Perform functional tests on assembled flashlights.
CNC machining is highly suitable for producing metal flashlights, offering the ability to create durable, high-quality, and precisely engineered components. This method supports the production of both standard and custom-designed flashlights, ensuring reliability and performance in a variety of applications.
